Container Specifications

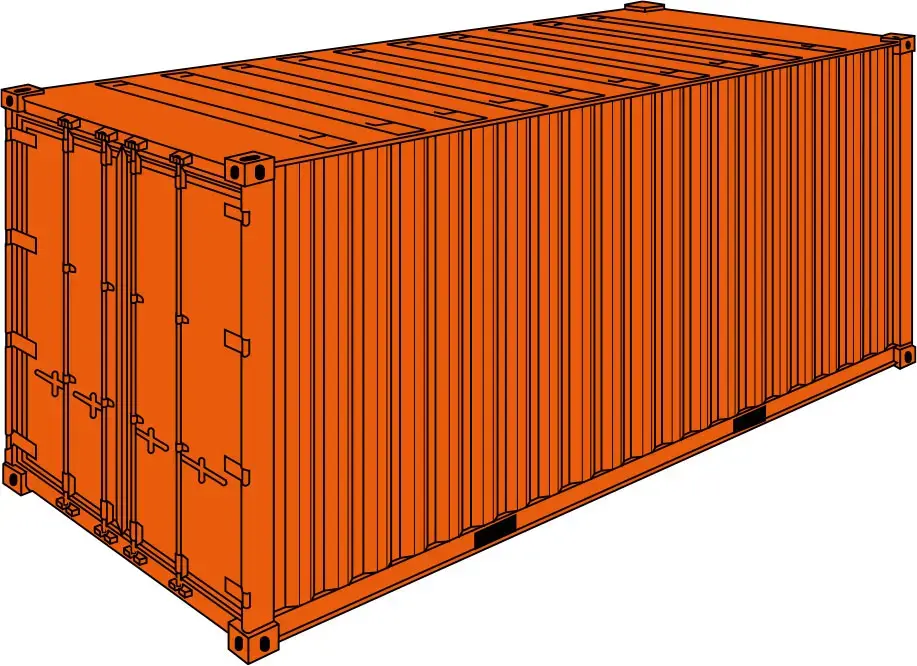

GENERAL PURPOSE CONTAINER

20' Steel Cargo Container / 8' 6" high

20' Steel Cargo Container / 8' 6" high

Inside Dimensions (L x W x H): 5,900 x 2,352 x 2,393 mm

19′ 4¼” * 7′ 85/8″ * 7′ 10¼”

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 2,300 kg / 5,071 lbs

Max. Payload Weight: 30,200kg / 66,579 lbs

Capacity: 33.20 m3 / 1,172 ft3

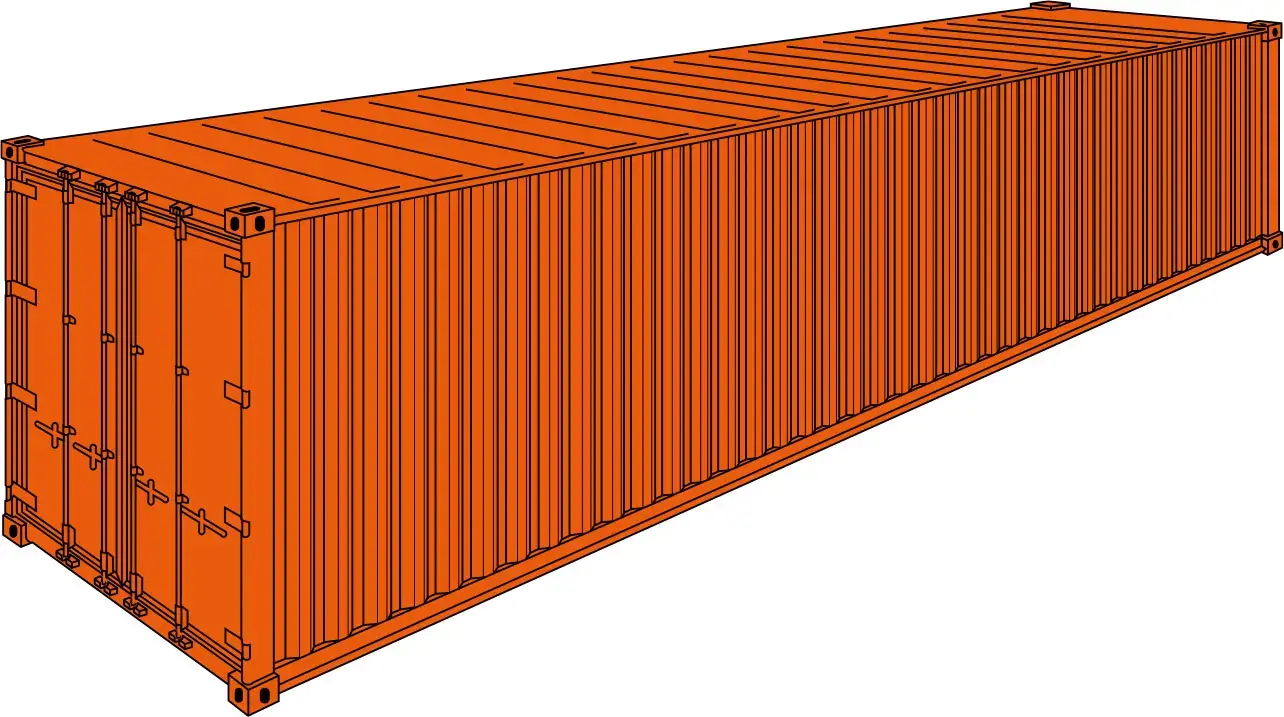

40' Steel Cargo Container / 8' 6" high

40' Steel Cargo Container / 8' 6" high

40′ Steel Cargo Container / 8′ 6″ high

Inside Dimensions (L x W x H): 12,032 x 2,352 x 2,395 mm

39′ 5 5/8″ * 7′ 8 5/8″ * 7′ 10¼”

Max. Gross Weight: 32,500 kg / 63,493 lbs

Tare Weight: 2,300 kg / 8,157 lbs

Max. Payload Weight: 28,800 kg / 63,493 lbs

Capacity: 67.7 m3 / 2,391 ft3

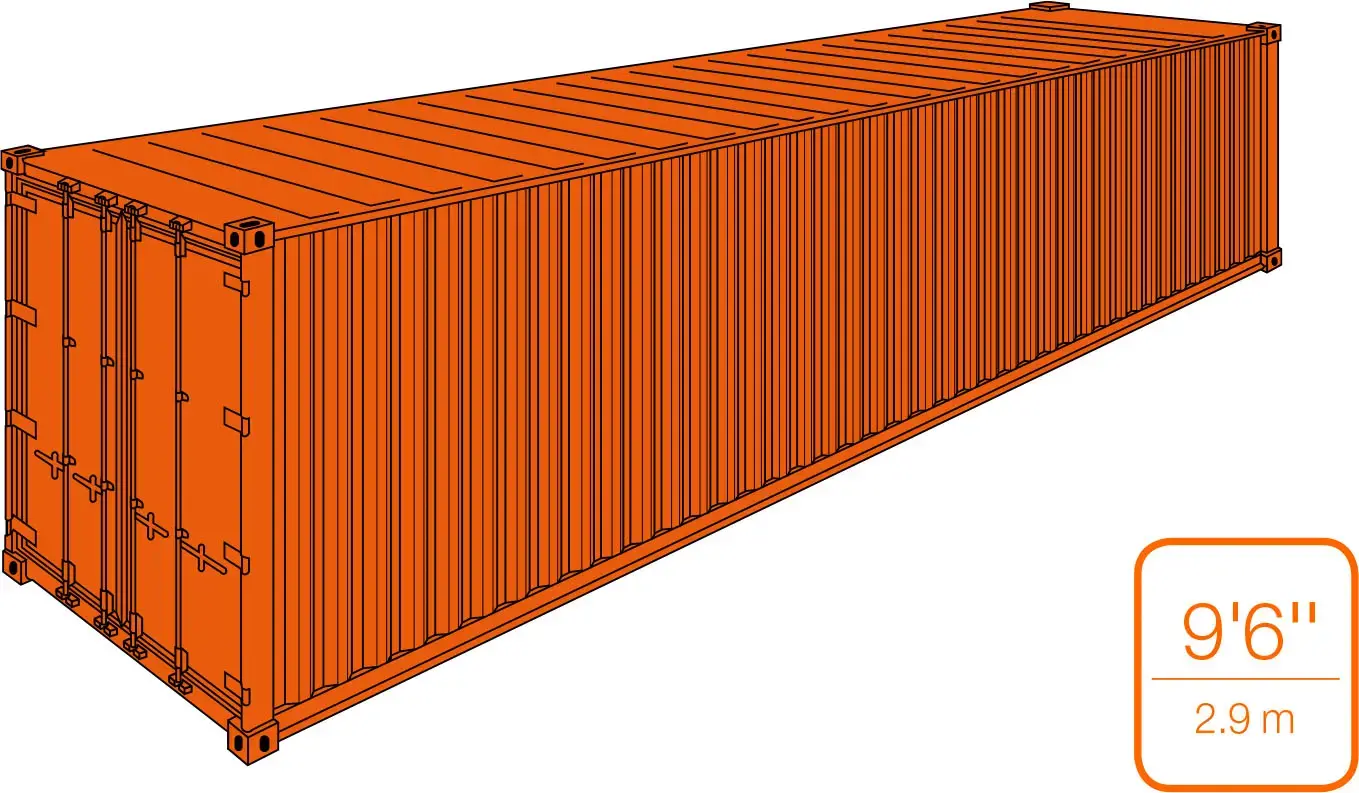

40' High Cube Cargo Container / 9' 6" high

40' High Cube Cargo Container / 9' 6" high

Inside Dimensions (L x W x H): 12,032 x 2,342 x 2,700 mm

39′ 55/8″ * 7′ 85/8″ * 7′ 10¼”

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 3,850 kg / 8,488 lbs

Max. Payload Weight: 28,650 kg / 63,162 lbs

Capacity: 76.3 m3 / 2,695 ft3

45' High Cube Cargo Container / 9' 6" high

45' High Cube Cargo Container / 9' 6" high

Inside Dimensions (L x W x H): 13,556 x 2,352 x 2,700 mm

44′ 55/8″ * 7′ 85/8″ * 8′ 10¼”

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 4,700 kg / 10,362 lbs

Max. Payload Weight: 27,800 kg / 61,288 lbs

Capacity: 86.0 m3 / 3,037 ft3

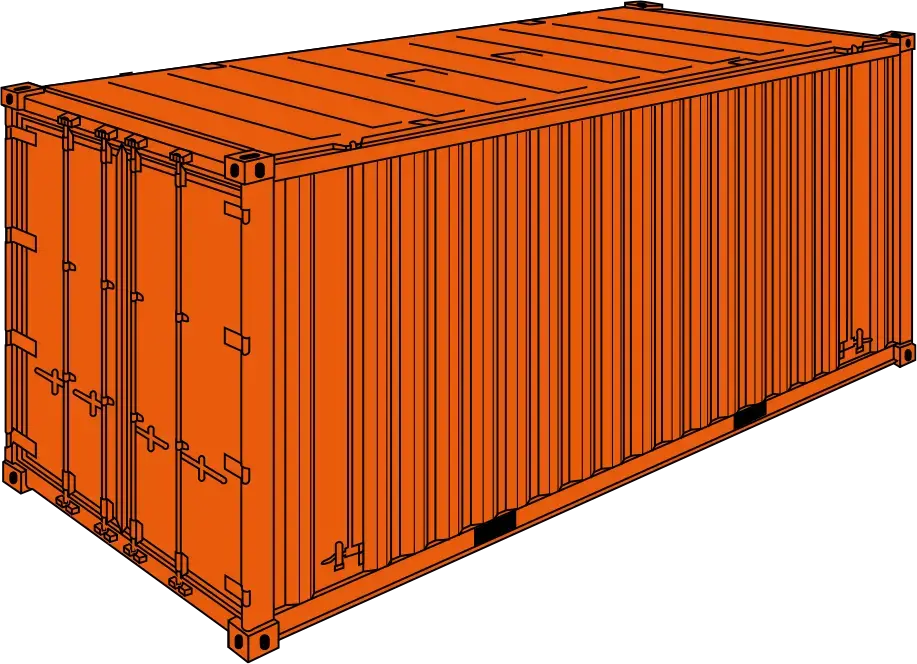

HARDTOP CONTAINER

20' Hardtop Cargo Container / 8' 6" high

20' Hardtop Cargo Container / 8' 6" high

Inside Dimensions (L x W x H): 5,895 x 2,350 x 2,384 (Middle) / 2,309 (Side) mm

19′ 41/8″ * 7′ 8½” * 7′ 97/8″ (Middle) / 7′ 67/8″ (Side)

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 2,850 kg / 6,283 lbs

Max. Payload Weight: 29,650 kg / 65,367 lbs

Capacity: 32.10 m3 / 1,134 ft3

40' Hardtop Cargo Container / 8' 6" high

40' Hardtop Cargo Container / 8' 6" high

Inside Dimensions (L x W x H): 12,020 x 2,342 x 2,388 (Middle) / 2,313 (Side) mm

139′ 5¼” * 7′ 81/8″ ” * 7′ 10″ (Middle) / 7′ 7″ (Side)

Max. Gross Weight: 30,480 kg / 67,197 lbs

Tare Weight: 4,700 kg / 10,362 lbs

Max. Payload Weight: 25,780 kg / 56,835 lbs

Capacity: 67.20 m3 / 2,373 ft3

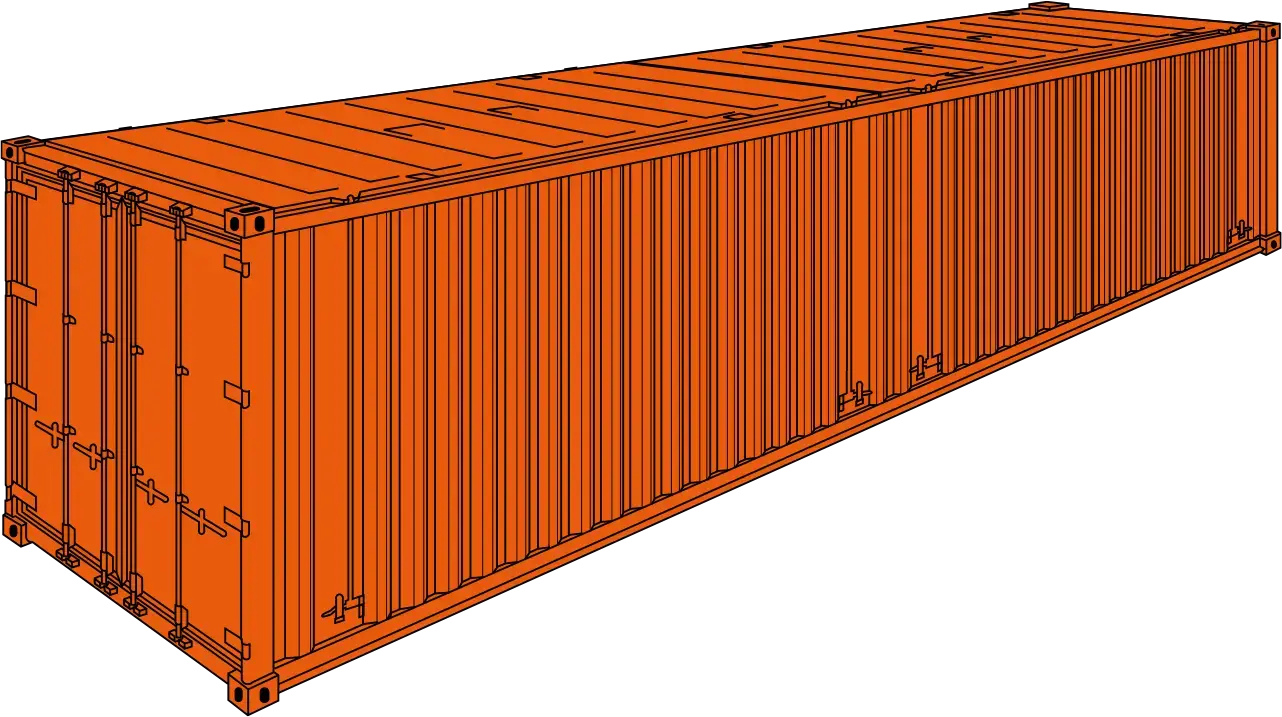

40' HC Hardtop Cargo Container / 9' 6" high

40' HC Hardtop Cargo Container / 9' 6" high

Inside Dimensions (L x W x H): 12,032 x 2,352 x 2,695 (Middle) / 2,620 (Side) mm

39′ 55/8″ * 7′ 85/8″ * 7′ 10″ (Middle) / 7′ 7″ (Side)

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 5,200 kg / 11,464 lbs

Max. Payload Weight: 27,300 kg / 60,186 lbs

Capacity: 76.3 m3 / 2,695 ft3

OPEN TOP CONTAINER

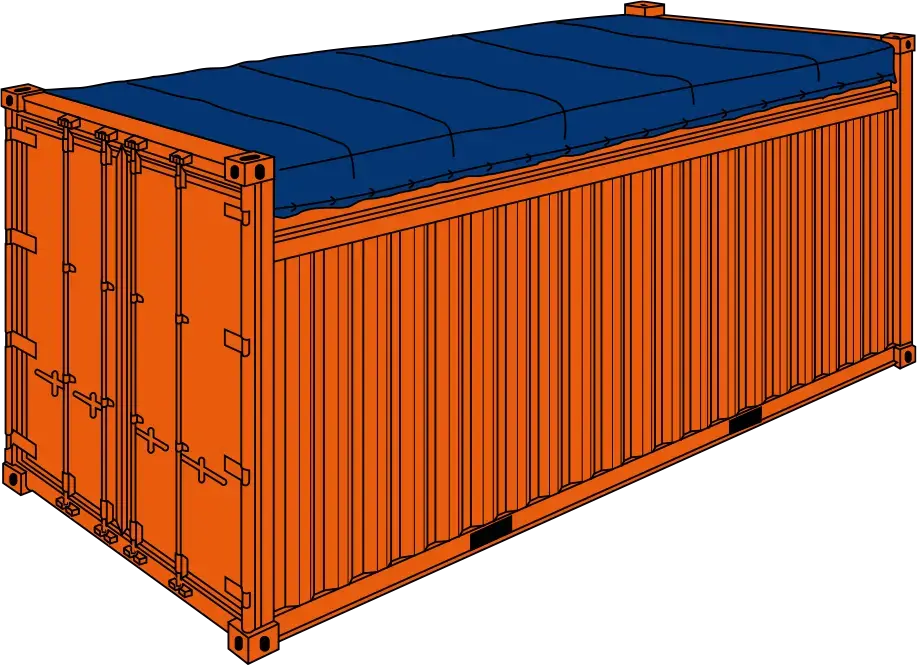

20' Open top Container / 8' 6" high

20' Open top Container / 8' 6" high

Inside Dimensions (L x W x H): 5,895 x 2,350 x 2,380 (Middle) / 2,340 (Side) mm

19′ 41/8″ * 7′ 8½” * 7′ 95/8″ (Middle) / 7′ 81/8″ (Side)

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 2,450 kg / 5,402 lbs

Max. Payload Weight: 30,050 kg / 66,248 lbs

Capacity: 32.5 m3 / 1,148 ft3

40' Open top Container / 8' 6" high

40' Open top Container / 8' 6" high

Inside Dimensions (L x W x H): 12,030 x 2,350 x 2,377 (Middle) / 2,347 (Side) mm

19′ 41/8″ * 7′ 8½” * 7′ 95/8″ (Middle) / 7′ 81/8″ (Side)

Max. Gross Weight: 30,480 kg / 67,196 lbs

Tare Weight: 3,850 kg / 8,488 lbs

Max. Payload Weight: 26,630 kg / 58,708 lbs

Capacity: 66.4 m3 / 2,345 ft3

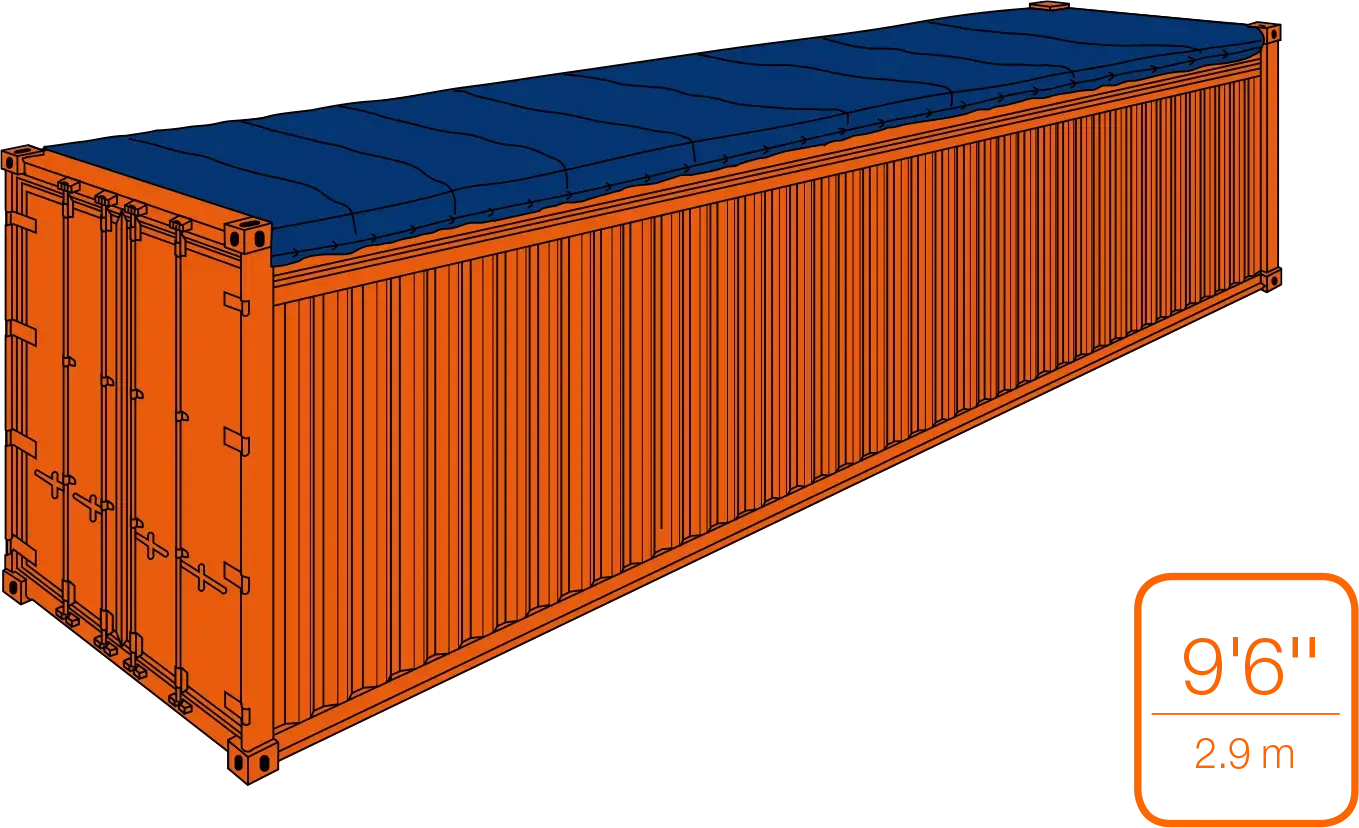

40' HC Open top Container / 9' 6" high

40' HC Open top Container / 9' 6" high

Inside Dimensions (L x W x H): 12,029 x 2,352 x 2,683 (Middle) / 2,649 (Side) mm

39′ 5½” * 7′ 8½” * 7′ 95/8″ (Middle) / 7′ 7¼” (Side)

Max. Gross Weight: 32,500 kg / 71,650 lbs

Tare Weight: 4,250 kg / 9,370 lbs

Max. Payload Weight: 28,250kg / 62,280 lbs

Capacity: 74.9 m3 / 2,645 ft3

FLATRACK

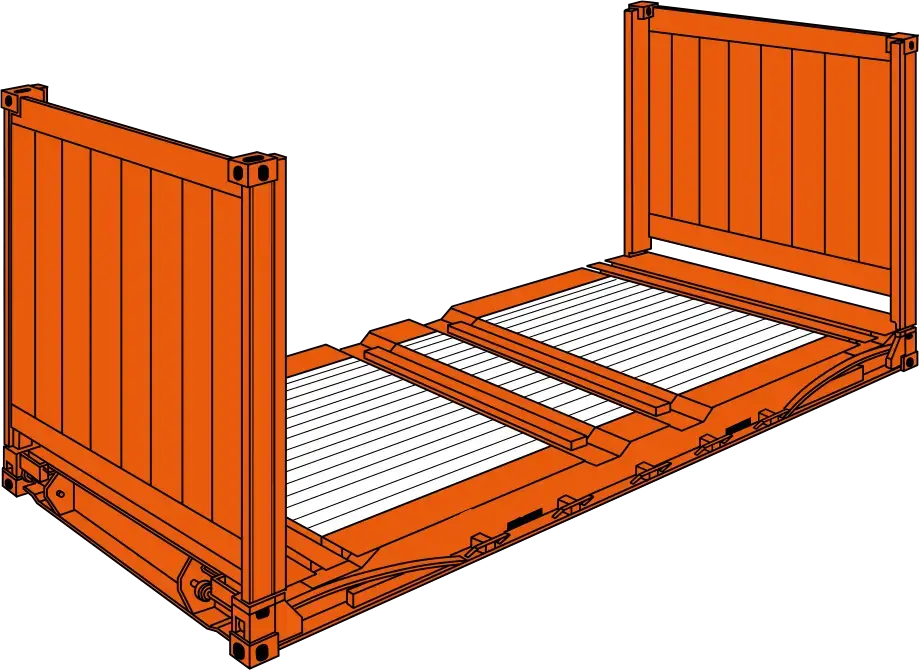

20' Flat rack / 8' 6" high

20' Flat rack / 8' 6" high

Length between corner posts: 5,612mm / 18′ 4 7/8″ ft

Width between corner posts: 2,227mm / 7′ 3 5/8″ ft

Width over floor/bottom side rails: 2,210 mm / 7′ 3″ ft

Height floor to top face (inside height): 2,219mm / 7′ 3 3/8″ ft

Height of bottom: 370mm / 1′ 2 ½” ft

Max. Gross Weight: 34,000 kg / 74,957 lbs

Tare Weight: 2,740 kg / 6,041 lbs

Max. Payload Weight: 31,260 kg / 68,916 lbs

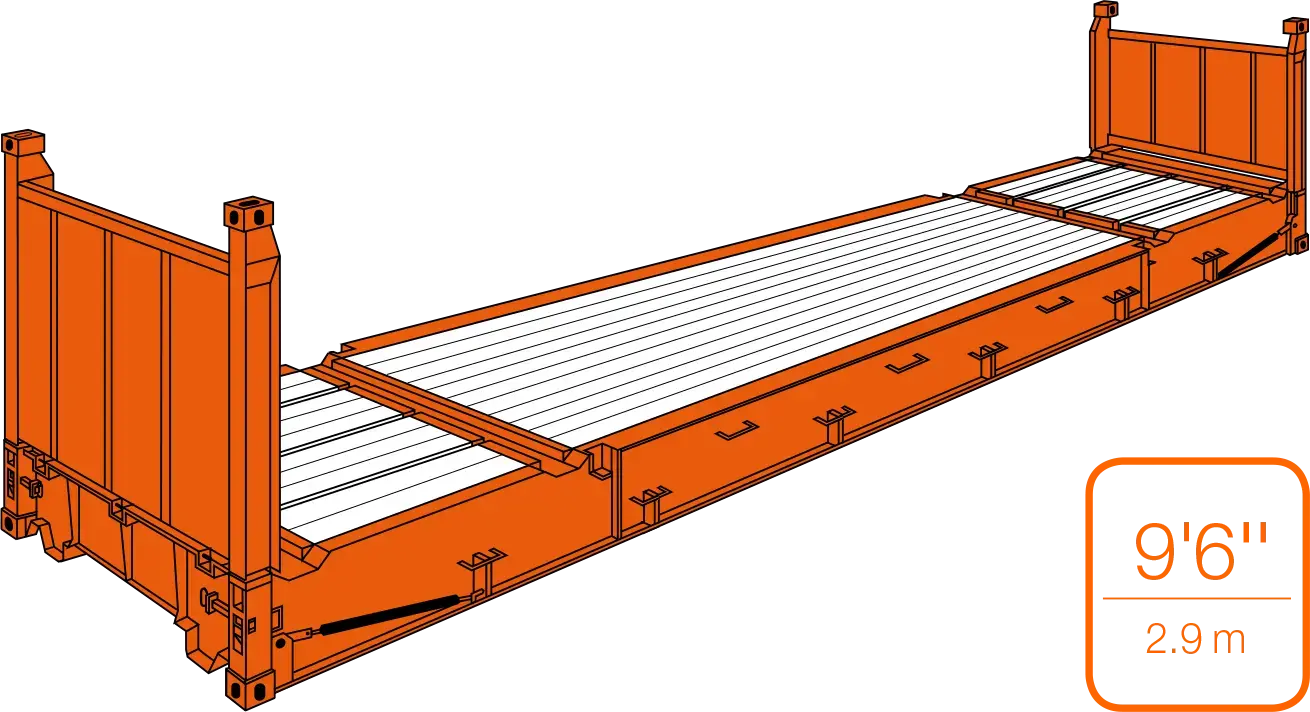

40' Flat rack / 9' 6" high

40' Flat rack / 9' 6" high

Length between corner posts: 11,652mm / 38′ 2 3/4″ ft

Width between corner posts: 2,224mm / 7′ 3 1/2″ ft

Width over floor/bottom side rails: 2,368 mm / 7′ 9 ¼” ft

Height floor to top face (inside height): 2,248mm / 7′ 4 1/2″ ft

Height of bottom: 648mm / 2′ 1½” ft

Max. Gross Weight: 50,000 kg / 110,230 lbs

Tare Weight: 5,950 kg / 13,117 lbs

Max. Payload Weight: 44,050 kg / 97,113 lbs

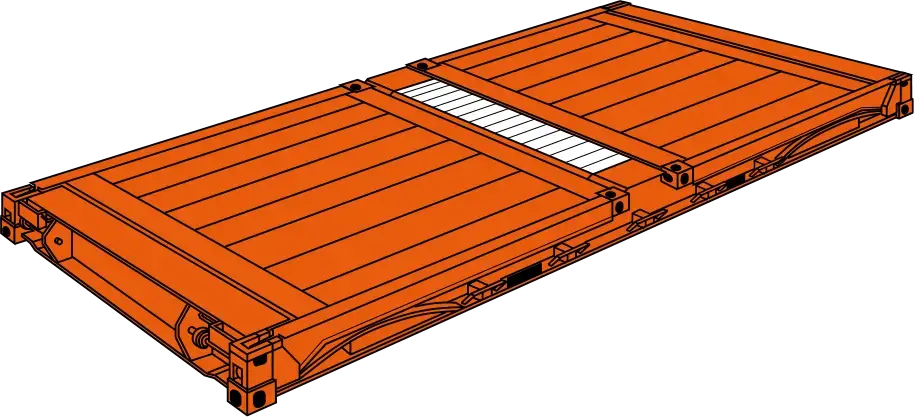

PLATFORM (COLLAPSED FLATRACK)

20' Flat/Platform with flush folding end walls and softwood floor

20' Flat/Platform with flush folding end walls and softwood floor

Inside Dimensions (L x W x H): 6,058 x 2,438 x 370 mm

20′ * 8’* 1′ 2½” ft

Max. Gross Weight: 34,000 kg / 74,957 lbs

Tare Weight: 2,740 kg / 6,041 lbs

Max. Payload Weight: 31,260 kg / 68,916 lbs



40' Flat/Platform with flush folding end walls and softwood floor

40' Flat/Platform with flush folding end walls and softwood floor

Inside Dimensions (L x W x H): 12,192 x 2,245 x 648 mm

40’ * 7′ 43/8″ * 1′ 2½” ft

Max. Gross Weight: 50,000 kg / 110,230 lbs

Tare Weight: 5,950 kg / 13,117 lbs

Max. Payload Weight: 44,050 kg / 97,113 lbs

REFRIGERATED CONTAINER (TEMPERATURE-CONTROLLED CONTAINER)

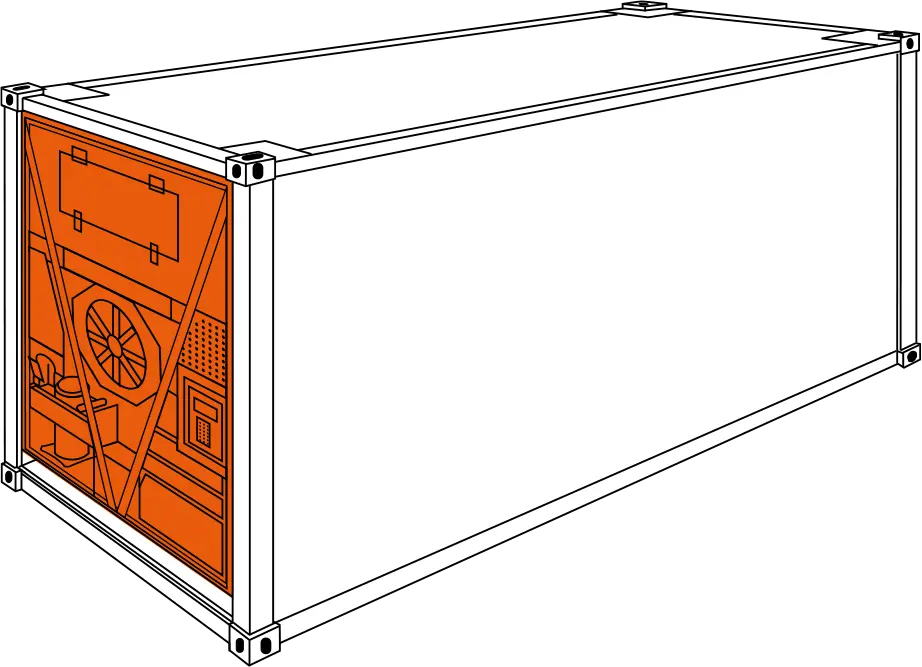

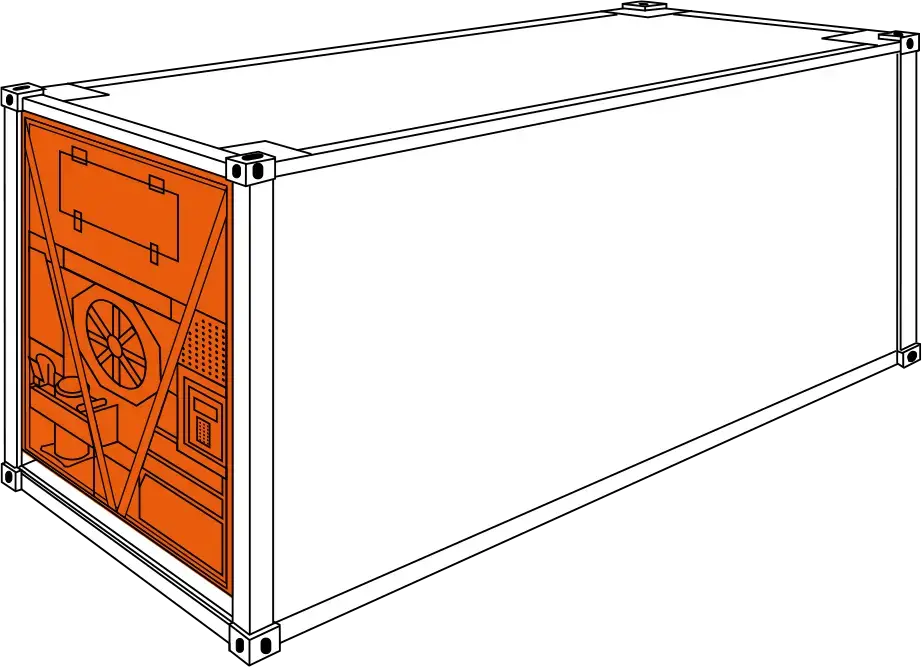

20' Refrigerated Container

20' Refrigerated Container

Inside Dimensions (L x W x H): 5,450 x 2,284 x 2,267 mm

17′ 10½” * 7′ 57/8″ * 7′ 5¼” ft

Max. stow height (to load line):2,184 / 7′ 2″ ft

Door openings (W x H): 2,290 x 2,264 mm

7′ 61/8″ * 7′ 51/8″

Max. Gross Weight: 30,480 kg / 67,196 lbs

Tare Weight: 2,905 kg / 6,404 lbs

Max. Payload Weight: 27,575 kg / 60,792 lbs

Capacity: 28.2 m3 / 996 ft3



20' Refrigerated Container Non-Foodstuff

20' Refrigerated Container Non-Foodstuff

Inside Dimensions (L x W x H): 5,535 x 2,316 x 2,331 mm

18′ 11/7″ * 7′ 71/8″ * 7′ 71/8″ ft

Max. stow height (to load line):2,211 / 7′ 3″ ft

Door openings (W x H): 2,316 x 2,290 mm

7′ 71/8″ * 7′ 6 1/8″

Max. Gross Weight: 30,480 kg / 67,196 lbs

Tare Weight: 3,030 kg / 6,680 lbs

Max. Payload Weight: 27,580 kg / 60,803 lbs

Capacity: 28.7 m3 / 1,014 ft3

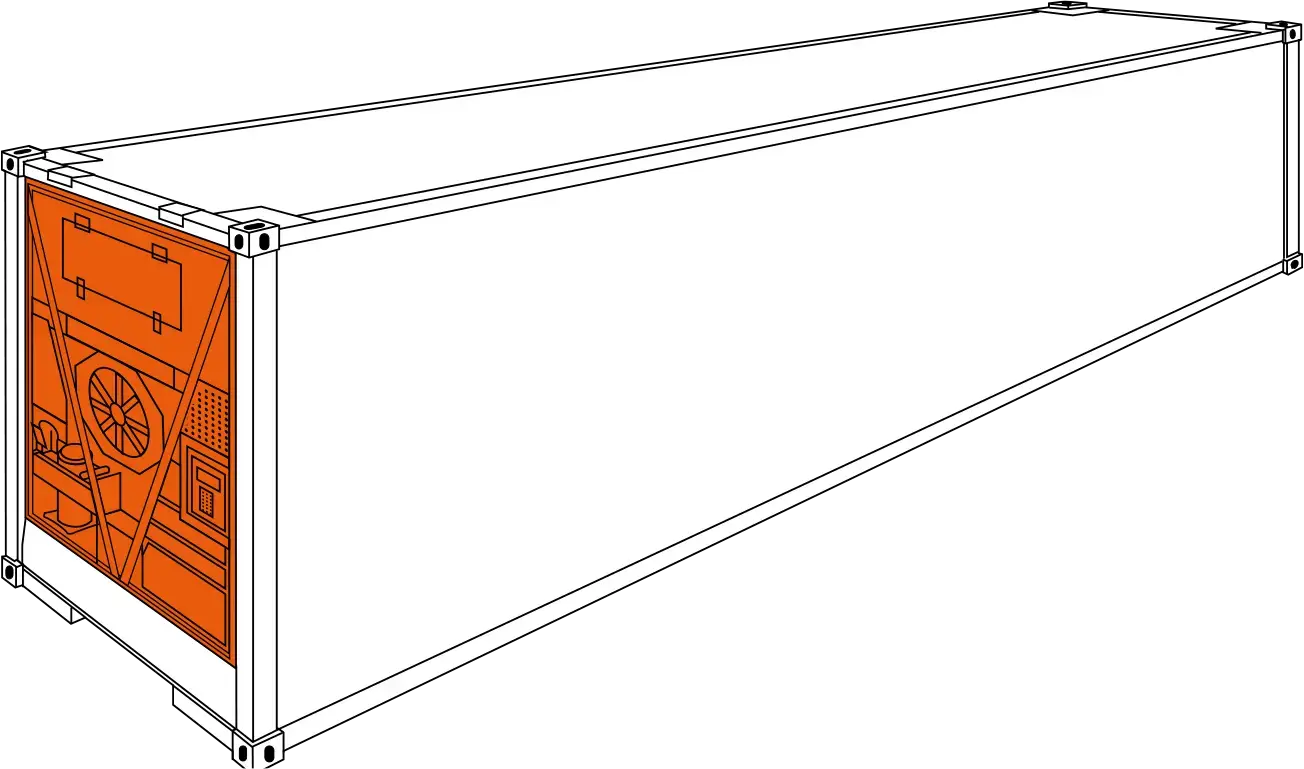

40' Refrigerated Container

40' Refrigerated Container

Inside Dimensions (L x W x H): 11,578 x 2,280 x 2,525 mm

37′ 11¾” * 7′ 5¾” * 8′ 33/8″ ft

Max. stow height (to load line):2,425 / 7′ 11½” ft

Door openings (W x H): 2,276 x 2,535 mm

7′ 55/8″ * 8′ 3¾”

Max. Gross Weight: 34,000 kg / 74957 lbs

Tare Weight: 4,300 kg / 9,480 lbs

Max. Payload Weight: 29,700 kg / 65,477 lbs

Capacity: 66.7 m3 / 2,356 ft3

40' Refrigerated Container

40' Controlled atmosphere technology (Extra Fresh)

nside Dimensions (L x W x H): 11,590 x 2,290 x 2,540 mm

38′ ¼” * 7′ 61/8″ * 8′ 4″ ft

Max. stow height (to load line):2,420 / 7′ 11 1/4″ ft

Door openings (W x H): 2,276 x 2,535 mm

7′ 55/8″ * 8′ 3¾”

Max. Gross Weight: 34,000 kg / 74956 lbs

Tare Weight: 4,570 kg / 10,075 lbs

Max. Payload Weight: 29,200 kg / 64,374 lbs

Capacity: 67.4 m3 / 2,380 ft3

40' Refrigerated Container

40' Refrigerated Container Non-Foodstuff

Inside Dimensions (L x W x H): 11,580 x 2,290 x 2,543 mm

37’117/8″ * 7′ 61/8″ * 8′ 41/8″ ft

Max. stow height (to load line):2,423 / 7′ 113/8″ ft

Door openings (W x H): 2,294 x 2,550 mm

7′ 55/8″ * 8′ 3¾”

Max. Gross Weight: 34,000 kg / 74957 lbs

Tare Weight: 4,550 kg / 10,031 lbs

Max. Payload Weight: 29,450 kg / 64,925 lbs

Capacity: 67.4 m3 / 2,380 ft3
