Aircraft Specifications

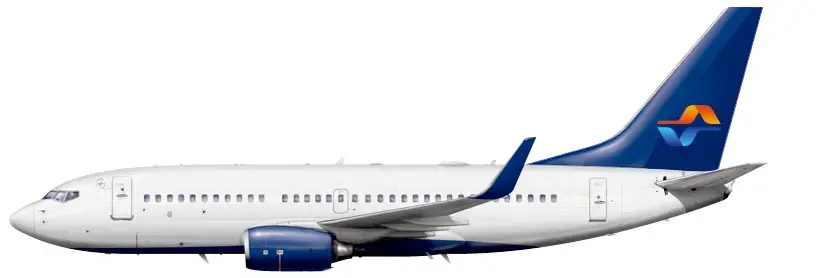

aircraft B737-700

B737-700

Total cargo capacity: 11,422 lbs. / 5,180 kg

Total cargo volume*: 966 cu. ft. / 27.3 m³

Cargo door dimensions (w x h):

Forward: 48” x 35” / 121 cm x 89 cm

Rear: 48” x 31” / 121 cm x 78 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

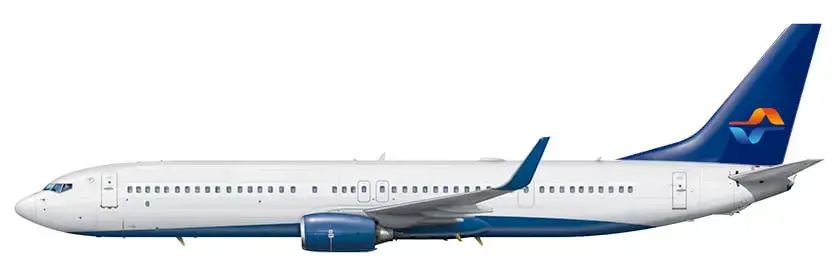

aircraft B737-800

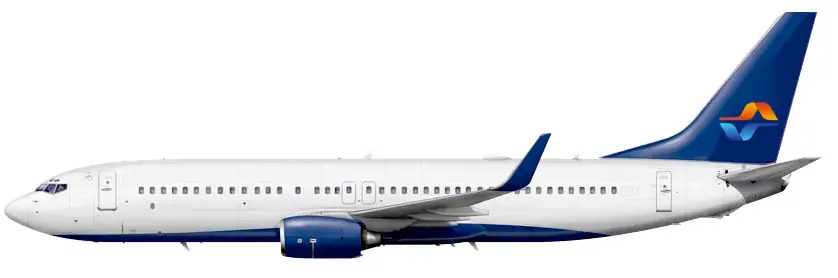

B737-800

Total cargo capacity: 18,540 lbs. / 8,409 kg

Total cargo volume*: 1,555 cu. ft. / 44 m³

Cargo door dimensions (w x h):

Forward: 48” x 35” / 121 cm x 89 cm

Rear: 48” x 31” / 121 cm x 78 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B737-900

B737-900

Total cargo capacity: 20,075 lbs. / 9,103 kg

Total cargo volume*: 1,826 cu. ft. / 51.7 m³

Cargo door dimensions (w x h):

Forward: 48” x 35” / 121 cm x 89 cm

Rear: 48” x 31” / 121 cm x 78 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B737-900

B737-MX9

otal cargo capacity: 19,931 lbs. / 9,037 kg

Total cargo volume*: 1,786 cu. ft. / 50.5 m³

Cargo door dimensions (w x h):

Forward: 48” x 35” / 121 cm x 89 cm

Rear: 48” x 31” / 121 cm x 78 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B757-200

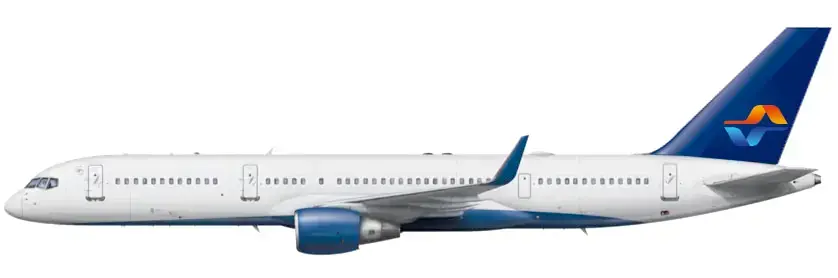

B757-200

otal cargo capacity: 19,931 lbs. / 9,037 kg

Total cargo volume*: 1,786 cu. ft. / 50.5 m³

Cargo door dimensions (w x h):

Forward: 48” x 35” / 121 cm x 89 cm

Rear: 48” x 31” / 121 cm x 78 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B757-300

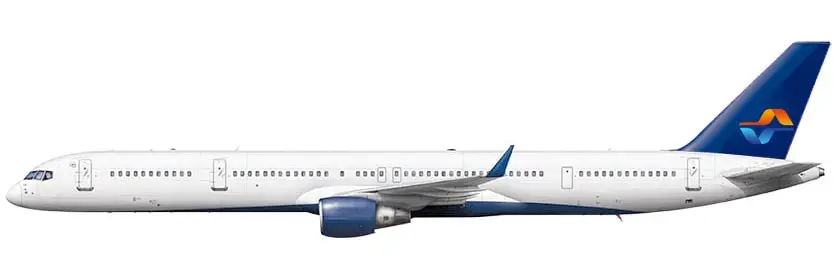

B757-300

Total cargo capacity: 35,600 lbs. / 16,147 kg

Total cargo volume*: 2,370 cu. ft. / 67 m³

Cargo door dimensions (w x h):

Forward: 55” x 42.5” / 140 cm x 108 cm

Rear: 55” x 44” / 140 cm x 112 cm

Bulk load per piece Max weight: 350 lbs. / 159 kg

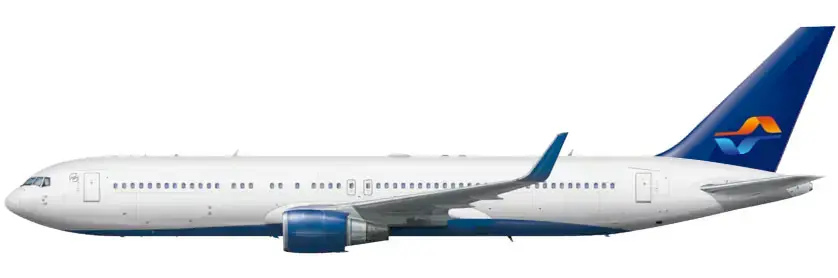

aircraft B767-300

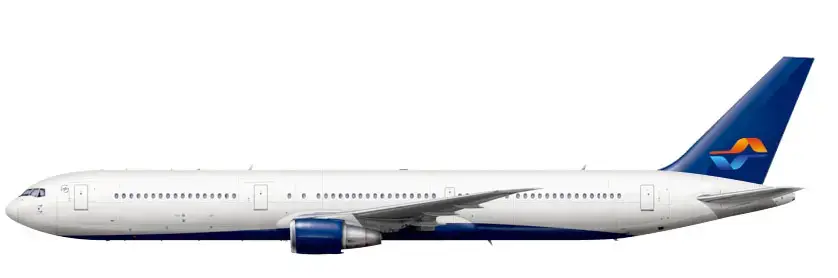

B767-300

Total cargo capacity: 93,195 lbs. / 42,270 kg

Total cargo volume*: 5,200 cu. ft. / 147 m³

Positions (standard LD2): 16 Forward, 14 Aft, 30 Total

Cargo door dimensions (w x h):

Forward: 134” x 69” / 340 cm x 175 cm

Rear: 70” x 69” / 177 cm x 175 cm

Bulk: 38” x 45” / 96 cm x 114 cm

Containers accepted: LD-2, LD-3, LD-4**,

LD-7, LD-8, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B767-400

B767-400

Total cargo capacity: 113,050 lbs. / 25,762 kg

Total cargo volume*: 6,296 cu. ft. / 178 m³

Positions (standard LD2): 20 Forward, 18 Aft, 38 Total

Cargo door dimensions (w x h):

Cargo door dimensions (w x h):

Forward: 134” x 69” / 340 cm x 175 cm

Rear: 70” x 69” / 178 cm x 175 cm

Bulk: 45” x 38” / 114 cm x 96 cm

Containers accepted: LD-2, LD-3, LD-4**,

LD-7, LD-8, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B777-200

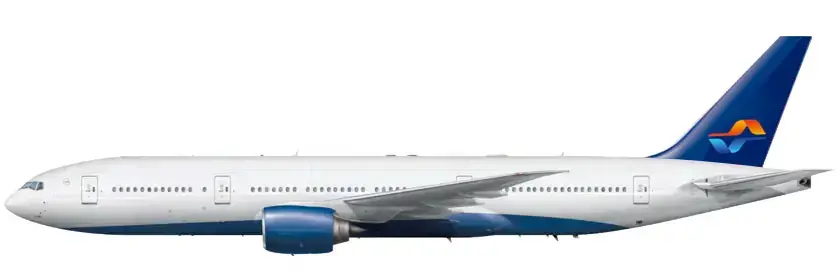

B777-200

Total cargo capacity: 121,769 lbs. / 55,233 kg

Total cargo volume*: 19,200 cu. ft. / 538.4 m³

Positions (standard LD3)***: 18 Forward, 14 Aft, 32 Total

Cargo door dimensions (w x h):

Forward: 106” x 67” / 269 cm x 170 cm

Rear: 106” x 67” / 269 cm x 170 cm

Bulk: 33.2” x 44” / 84 cm x 111 cm

Containers accepted: P9A, LD-8, LD-7, LD-4**,

LD-3, LD-2, LD-11, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

aircraft B777-300ER

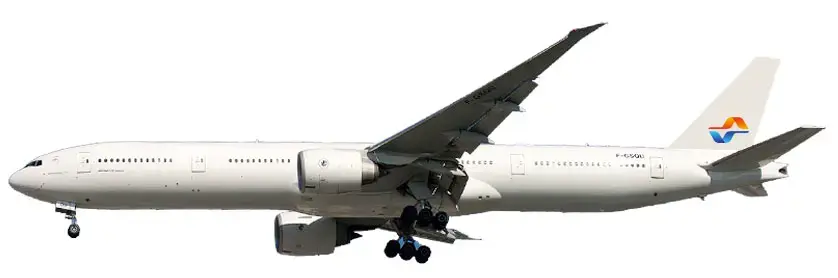

B777-300ER

Total cargo capacity: 153,040 lbs. / 69,416 kg

Total cargo volume*: 9,356 cu. ft. / 265 m³

Positions (standard LD3): 24 Forward, 20 Aft, 44 Total

Cargo door dimensions (w x h):

Forward: 97” x 66” / 269 cm x 170 cm

Rear: 97” x 66” / 269 cm x 170 cm

Bulk: 33.2” x 44” / 84 cm x 111 cm

Containers accepted: P9A, LD-8, LD-7, LD-4**,

LD-3, LD-2, LD-11, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

B787-800 Dreamliner

B787-800 Dreamliner

Total cargo capacity: 104,460 lbs. / 47,381 kg

Total cargo volume*: 3,997 cu. ft. / 113 m³

Positions (standard LD3): 16 Forward, 12 Aft, 28 Total

Cargo door dimensions (w x h):

Forward: 106” x 66” / 269 cm x 170 cm

Rear: 106” x 66” / 269 cm 170 cm

Bulk: 40” x 45” / 102 cm x 114 cm

Containers accepted: LD-2, LD-3, LD-7, LD-8,

LD-11, P6, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

B787-800 Dreamliner

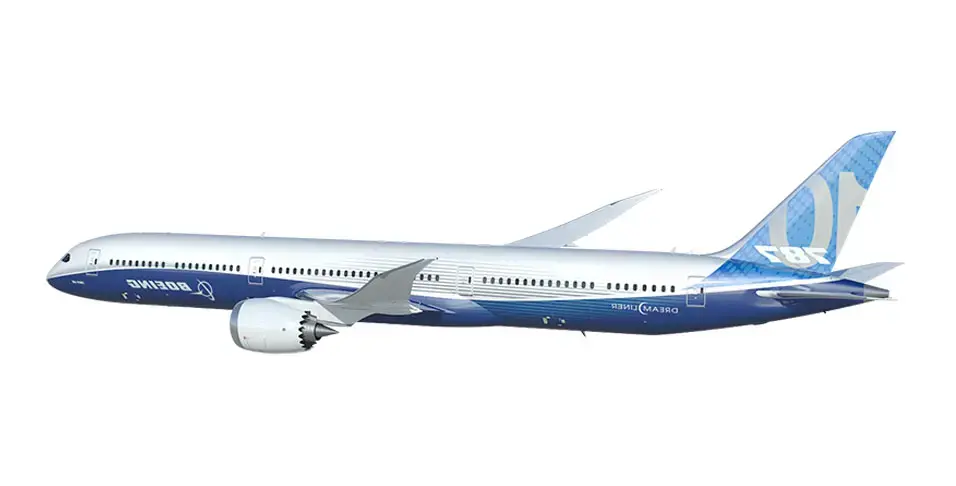

B787-900 Dreamliner

Total cargo capacity: 133,150 lbs. / 60,395 kg

Total cargo volume*: 4,988 cu. ft. / 141 m³

Positions (standard LD3): 20 Forward, 16 Aft, 36 Total

Cargo door dimensions (w x h):

Forward: 106” x 66” / 269 cm x 170 cm

Rear: 106” x 66” / 269 cm x 170 cm

Bulk: 40” x 45” / 104 cm x 114 cm

Containers accepted: LD-2, LD-3, LD-7, LD-8,

LD-11, P6, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

B787-800 Dreamliner

B787-10 Dreamliner

Total cargo capacity: 155,030 lbs. / 70,319 kg

Total cargo volume*: 5,835 cu. ft. / 165 m³

Positions (standard LD3): 22 Forward, 18 Aft, 40 Total

Cargo door dimensions (w x h):

Forward: 106” x 66” / 269 cm x 170 cm

Rear: 106” x 66” / 269 cm x 170 cm

Bulk: 40” x 45” / 104 cm x 114 cm

Containers accepted: LD-2, LD-3, LD-7, LD-8,

LD-11, P6, RKN, RAP

Bulk load per piece Max weight: 350 lbs. / 159 kg

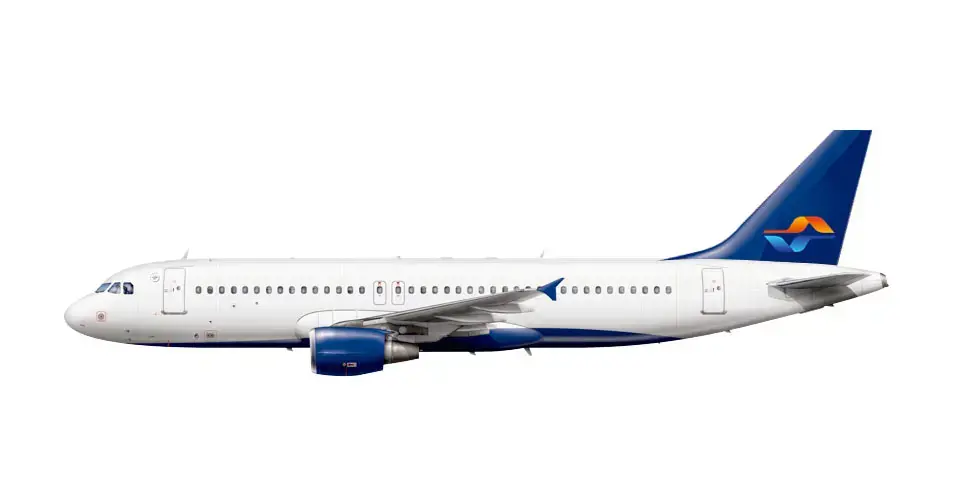

A320 / A319

A320 / A319

Total cargo capacity: 13,960 lbs. / 6,332 kg

Total cargo volume*: 975 cu. ft. / 27 m³

Cargo door dimensions (w x h):

Forward: 71” x 48” / 180 cm x 122 cm

Rear: 71” x 48” / 180 cm x 122 cm

Bulk load per piece Max weight : 350 lbs. / 159 kg
